- Mid temperature coating allows for operation up to 130 °C for continuous use
- Low beat length of ≤ 5 mm
- High birefringence
- Tight geometrical tolerances
- Bend insensitive design provides improved macrobend performance
Part no -
07427-01

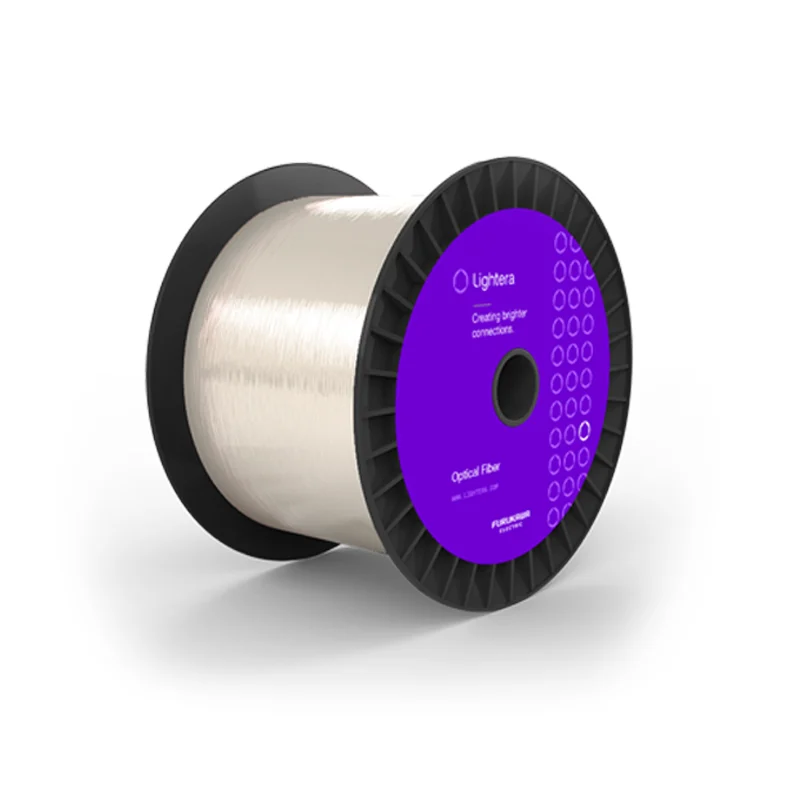

TruePhase® Bend-Insensitive Mid-Temp Polarization-Maintaining Optical Fiber
TruePhase® Bend-Insensitive Polarization-Maintaining (BI PMF) Optical Fiber for use in small bend radius applications that demand superior bending performance. At 1550 nm and at a very demanding 5 mm, the macro-bend induced loss of the fiber is less than 0.1 dB/turn.
The fiber is available with a standard communications grade, 250 μm dual layer UV acrylate coating.
TruePhase Optical Fibers utilize industry-standard stress applying parts (SAPs) to create two axes in the core, each of which guides light at a different velocity; a Panda design. This standard design allows for the use of easy splice recipes offered by the major fusion splicer manufacturers.
TruePhase® Bend-Insensitive Polarization-Maintaining (BI PMF) Optical Fiber for use in small bend radius applications that demand superior bending performance. At 1550 nm and at a very demanding 5 mm, the macro-bend induced loss of the fiber is less than 0.1 dB/turn.
The fiber is available with a standard communications grade, 250 μm dual layer UV acrylate coating.
TruePhase Optical Fibers utilize industry-standard stress applying parts (SAPs) to create two axes in the core, each of which guides light at a different velocity; a Panda design. This standard design allows for the use of easy splice recipes offered by the major fusion splicer manufacturers.
Features
Product Overview
TruePhase® Bend-Insensitive Polarization-Maintaining (BI PMF) Optical Fiber for use in small bend radius applications that demand superior bending performance.
This fiber is available with a mid temperature grade, 250 μm dual layer coating.
TruePhase Optical Fibers utilize industry-standard stress applying parts (SAPs) to create two axes in the core, each of which guides light at a different velocity; a Panda design. This standard design allows for the use of easy splice recipes offered by the major fusion splicer manufacturers.
Typical Applications
- Laser Pigtails
- Photonic Integrated Circuits
- Polarization-Sensitive Components
- PMD Compensators
- Polarizing Beam Splitters
Product Specifications
| Product Specifications | |
|---|---|
| Physical Characteristics | |
| Coating Material | Mid-Temp Dual Coat |
| Cladding Diameter | 125 ± 1 µm |
| Clad Non-Circularity | ≤ 2.0% |
| Core/Clad Concentricity Error | ≤ 0.5 µm |
| Secondary Coating Diameter | 245 ± 10 µm |
| Overall Coat Concentricity Error | ≤ 10 µm |
| Optical Characteristics | |
| Attenuation at 1550 nm | ≤ 0.8 dB/km |
| Cut-off Wavelength | ≤ 1500 nm |
| Mode Field Diameter at 1550 nm | 9.4 – 10.4 µm |
| Crosstalk at 1550 nm | ≤ -30 dB/100 m |
| Beat Length at 1550 nm | 4.2 – 5.0 mm |
| Maximum Attenuation at 1550 nm | Induced Attenuation | ||
| 1 turn on a 5 mm radius mandrel | ≤ 0.1 dB | ||
| 10 turns on a 10 mm radius mandrel | ≤ 0.1 dB | ||
| 10 turns on a 15 mm radius mandrel | ≤ 0.1 dB | ||
| Mechanical and Environmental | |||
| Operating Temperature | -45 to +130 °C | ||
| Tensile Proof Test | 200 kpsi (1.38 GPa) | ||
| Coating Strip Force | Range: 1 N ≤ CSF ≤ 3 N | ||
| Dynamic Fatigue Parameter | nd ≥ 20 | ||
|
Postexposure Optical Characteristics
|
|||
| Unaged | 6 Reflow Cycles | 6 Reflow Cycles + Damp Heat at 85 °C and 85% RH for 2000 Hours | |
| Maximum Attenuation at 1550 nm | ≤ 0.8 dB/km | ≤ 0.8 dB/km | |
| Beat Length at 1550 nm | 4.2 – 5.0 mm | 4.2 – 5.0 mm | |
| Crosstalk at 1550 nm | |||
| 1 turn @ 5 mm radius | ≤ -29.0 dB/20 m | ≤ -27.0 dB/20m | ≤ -31.0 dB/20 m |
| 1 turn @ 10 mm radius | ≤ -31.0 dB/20 m | ≤ -28.0 dB/20 m | ≤ -31.0 dB/20 m |
| 10 turns @ 10 mm radius | ≤ -30.0 dB/20 m | ≤ -27.0 dB/20 m | ≤ -31.0 dB/20 m |
| 1 turn @ 15 mm radius | ≤ -31.0 dB/20 m | ≤ -28.0 dB/20 m | ≤ -32.0 dB/20 m |
| 10 turns @ 15 mm radius | ≤ -31.0 dB/20 m | ≤ -27.0 dB/20 m | ≤ -31.0 dB/20 m |
| Macrobending Attenuation @ 1550 nm | Induced Attenuation | ||
| 1 turns on a 5 mm radius mandrel | ≤ 0.3 dB | ≤ 0.3 dB | |
| 10 turns on a 10 mm radius mandrel | ≤ 0.1 dB | ≤ 0.1 dB | |
| 10 turns on a 15 mm radius mandrel | ≤ 0.1 dB | ≤ 0.1 dB | |
| Postexposure Mechanical Characteristics | |||
| Coating Diameter Change | ≤ 5% | ≤ 5% | |
| Dynamic Tensile Strength (Median) | > 690 kpsi (4.76 GPa) | ||
| Dynamic Fatigue Stress Corrosion Parameter | nd ≥ 20 | ||
| Part Number | F86143 | ||
Contact Information
For additional information please contact your sales representative. You can also visit our website at www.lightera.com or call 1-888-FIBERHELP (1-888-342-3743) USA or 1-770-798-5555 outside the USA. For a full list of our certifications, visit our website.
Trademark Notice and Disclaimer
Lightera reserves the right to make changes to the product(s) described in this document at any time without notice. This document is for informational purposes only and is not intended to modify or supplement any Lightera warranties or specifications relating to any of its products or services.
