Totally dry optical cable up to 72 fibers pre-terminated with singlefiber connectors, for interconnection between cabinets or racks.
Totally dry optical cable up to 72 fibers pre-terminated with singlefiber connectors, for interconnection between cabinets or racks.
Optical Cable with fully dry construction type ("loose tube") pre-terminated in factory using optical connectors, for indoor or indoor/outdoor environments.

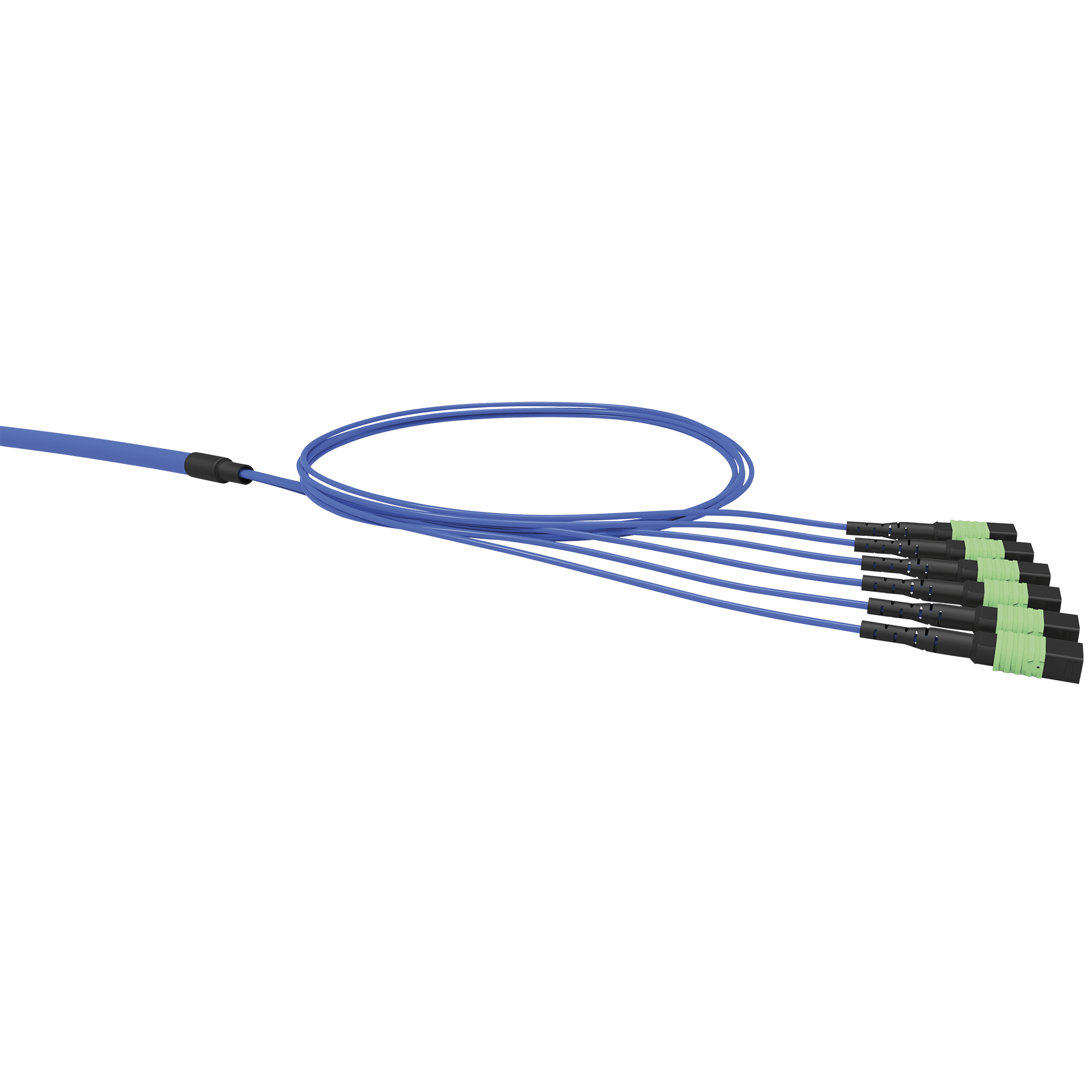

Available assembled at both ends with MPO optical connectors, with MPO connector assemblies on an end and monofiber connectors at the opposite end or with monofiber connectors at both ends.
Supports IIEEE 802.3ae (10Gbase-SR), IEEE 802.3ab (40Gbase-SR4) applications and ANSI T11.2 (Fibre Channel).
indoor or Indoor/outdoor
Non Aggressive
Totally Dry Construction Indoor
Totally Dry Construction Indoor/Outdoor
Minimum bend radius (mm): During installation the cable diameter must be 20x and after installation must be 10x the cable diameter
From 10 to 100 m
* Additional lenghts available upon request.
Totally Dry Construction Indoor
Totally Dry Construction Indoor/Outdoor
Optical Cable Totally Dry: Cable is made of totally dry 'loose' tube, dielectric strength member and flame retardant thermoplastic providing mechanical protection to the fibers. The inner tube is dry, gel-free, protected with water blocking material to prevent water intrusion. The optical fibers are grouped in subgroups of 12 fibers.
LC, SC, ST, FC or MPO
The ends are staggered 12 out of 12 connectors, 10cm apart between the connectors (LC, SC, ST, FC)
